LI S 86 34 48
Denote The Max Length Per 1mm
Denote Width Code Per 1mm
Denote The Max Thickness Per 1mm
|
|
|
| Denote Lithium Ion Battery |
|
Charge 0 ℃ ～45℃
Discharge -20℃ ～60℃ |
| |
|
| Performance |
 |
| CAPACITY SIZE WEIGHT |

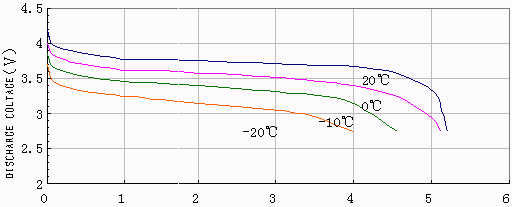

Cell Discharge Curves at Various Temperature |
charge: 4.2V/1CmA/2.5h
discharge: 0.2CmA/2.75V
temperature: 23 ℃ |
 |
discharge time (hour) |

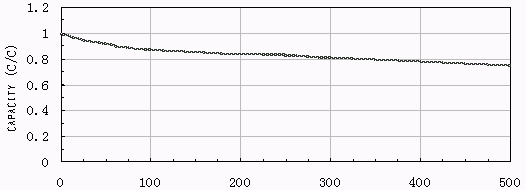

Cycles Life |
charge: 4.2V/1CmA/2.5h
discharge: 1CmA /2.75V
temperature: 23℃ |
 |
cycle time |

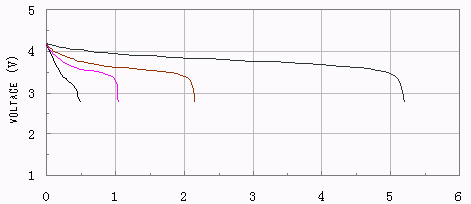

Discharge Load Characteristics |

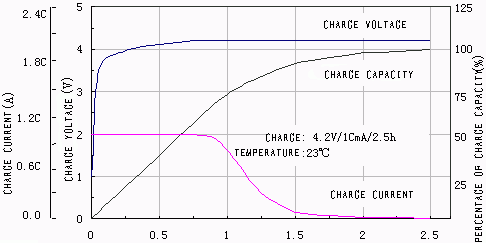

charge: 4.2V/ 1CmA/ 2.5h
temperature: 23℃ |
 |
charge time (hour) |
|
 |
charge time (hour) |
|
