Lionik lipo For High Rate Dicharge Series Cell List:

Model
Typical Capacit
(mAh)
Minimum Capacity (mAh)
Impedence
(m Ω)
Nominal
Voltage
(V)
Dimension of Bare cell
(mm)

Weight (±0.5g)

Thickness
(±0.2)
Width
(±0.5)
Length
(±0.5)

 PL-302030P10C

100

90

≤60
3.7

3.0

20

30

3.0

 PL-452030P10C

170

150

≤60
3.7

4.5

20

30

4.3

 PL-602460P10C

650

600

≤60
3.7

6.0

24

60

15.5

 PL-052540P10C
400
390
≤80
3.7
5.0
25
40
9.0
 PL-552540P10C
450
430
≤60
3.7
5.5
25
40
12.5
 PL-602567P10C
650
600
≤60
3.7
6.0
25
67
15.5
 PL-353048P10C
270
250
≤60
3.7
3.5
30
48
7.0
 PL-053562P10C
1050
1000
≤45
3.7
5.0
35
62
22.0
 PL-403562P10C
1050
1000
≤45
3.7
5.0
35
62
22.0
 PL-355585P10C
1400
1350
≤60
3.7
3.5
55
85
32.0
 PL-425585P10C
1900
1850
≤45
3.7
4.4
55
85
39.0

 PL-353048P12C

280

250

≤60
3.7

3.5

30

48

8.5

 PL-403048P12C

400

350

≤60
3.7

4.0

30

48

9.0

 PL-503048P12C

600

500

≤60
3.7

5.0

30

48

14.0

 PL-703048P12C

800

700

≤60
3.7

7.0

30

48

19.0

 PL-803080P12C

1600

1500

≤60
3.7

8.0

30

80

39.5

 PL-503090P12C

1100

1000

≤60
3.7

5.0

30

90

28.0

 PL-703090P12C

1450

1350

≤60
3.7

7.0

30

90

37.0

 PL-753090P12C

1600

1500

≤60
3.7

7.5

30

90

39.0

 PL-883090P12C

2000

1900

≤60
3.7

8.8

30

90

45.5

 PL-503460P12C

800

750

≤60
3.7

5.0

34

60

19.0

 PL-803464P12C

1200

1100

≤60
3.7

8.0

34

64

28.5

 PL-703466P12C

1300

1250

≤60
3.7

7.0

34

66

31.5

 PL-953466P12C

1900

1700

≤60
3.7

9.5

34

66

43.0

 PL-403496P12C

1150

1000

≤60
3.7

4.0

34

96

26.0

 PL-503496P12C

1350

1300

≤60
3.7

5.0

34

96

34.0

 PL-603496P12C

1550

1400

≤60
3.7

6.0

34

96

39.0

 PL-753496P12C

2000

1900

≤60
3.7

7.5

34

96

47.5

 PL-803496P12C

2200

2100

≤60
3.7

8.0

34

96

52.0

 PL-653560P12C

1050

1000

≤60
3.7

6.5

35

60

26.0

 PL-803560P12C

1250

1150

≤60
3.7

8.5

35

60

33.0

 PL-883560P12C

1500

1400

≤60
3.7

8.8

35

60

36.0

 PL-3335135P12C

1100

1050

≤60
3.7

3.3

35

135

29.5

 PL-6035135P12C

2200

2000

≤60
3.7

6.0

35

135

57.0

 PL-7035135P12C

2400

2300

≤60
3.7

6.0

35

135

59.0

 PL-503759P12C

900

800

≤60
3.7

5.0

37

59

22.0

 PL-753770P12C

1600

1500

≤60
3.7

7.8

37

70

40.5

 PL-454374P12C

1100

1050

≤60
3.7

4.5

43

74

28.0

 PL-484374P12C

1200

1100

≤60
3.7

4.8

43

74

29.0

 PL-604374P12C

1600

1500

≤60
3.7

6.0

43

74

39.5

 PL-804374P12C

2200

2000

≤60
3.7

8.0

43

74

54.0

 PL-5644125P12C

2600

2500

≤60
3.7

5.6

44

125

65.5

 PL-455085P12C

1300

1200

≤60
3.7

4.5

50

85

36.0

 PL-555385P12C
2200
2100
≤45
3.7
5.5
53
85
51.0
 PL-525590P12C
2200
2100
≤45
3.7
4.4
55
85
51.5

 PL-502030P16C

210

200

≤60
3.7

5.0

20

30

6.0

 PL-353048P16C

350

320

≤60
3.7

3.5

30

48

9.0

 PL-503048P16C

630

600

≤60
3.7

5.0

30

48

12.0

 PL-703048P16C

840

8000

≤60
3.7

7.0

30

48

15.0

 PL-703090P16C

1400

1300

≤60
3.7

7.0

30

90

35.5

 PL-603456P16C

1050

1000

≤60
3.7

6.0

34

56

28.0

 PL-503460P16C

800

700

≤60
3.7

5.0

34

60

21.0

 PL-703466P16C

1300

1200

≤60
3.7

7.0

34

66

31.0

 PL-503482P16C

1350

1300

≤60
3.7

5.0

34

82

34.0

 PL-703482P16C

1950

1900

≤60
3.7

7.0

34

82

48.0

 PL-403496P16C

1000

900

≤60
3.7

4.0

34

96

27.5

 PL-563496P16C

1300

1200

≤60
3.7

5.6

34

96

34.0

 PL-603496P16C

1500

1400

≤60
3.7

6.0

34

96

40.0

 PL-753496P16C

1900

1800

≤60
3.7

7.5

34

96

48.0

 PL-853496P16C

2200

2000

≤60
3.7

8.0

34

96

52.0

 PL-423560P16C

600

550

≤60
3.7

4.2

35

60

17.0

 PL-653560P16C

1000

900

≤60
3.7

6.5

35

60

25.5

 PL-803560P16C

1250

1150

≤60
3.7

8.0

35

60

33.5

 PL-853560P16C

1300

1250

≤60
3.7

8.5

35

60

35.0

 PL-3535135P16C

1000

900

≤60
3.7

3.5

35

135

32.5

 PL-4235135P16C

1500

1400

≤60
3.7

4.2

35

135

41.0

 PL-5535135P16C

1800

1700

≤60
3.7

5.5

35

135

50.0

 PL-6035135P16C

2000

1900

≤60
3.7

6.0

35

135

56.0

 PL-6535135P16C

2200

2100

≤60
3.7

6.5

35

135

60.0

 PL-7535135P16C

3200

3000

≤60
3.7

7.5

35

135

76.0

 PL-503759P16C

1100

1050

≤60
3.7

5.0

37

59

21.5

 PL-854374P16C

2200

2000

≤60
3.7

8.5

43

74

55.0

 PL-7450150P16C

5100

5000

≤60
3.7

7.4

5.0

150

143.0

 PL-553048P22C

600

550

≤60
3.7

5.5

30

48

18.5

 PL-553460P22C

800

750

≤60
3.7

5.5

34

60

 22.0

 PL-583460P22C

900

800

≤60
3.7

5.8

34

60

24.0

 PL-753466P22C

1200

1100

≤60
3.7

7.5

34

66

32.5

 PL-753480P22C

1500

1400

≤60
3.7

7.5

34

80

40.5

 PL-603496P22C

1500

1400

≤60
3.7

6.0

34

96

40.5

 PL-683496P22C

1550

1450

≤60
3.7

6.8

34

96

 41.0

 PL-753496P22C

1800

1700

≤60
3.7

7.5

34

96

 46.5

 PL-853496P22C

2200

2000

≤60
3.7

8.5

34

96

 56.0

 PL-453560P22C

560

530

≤60
3.7
4.5

35

60

17.5

 PL-6535135P22C

2200

2000

≤60
3.7

6.5

35

135

56.0

 PL-683560P22C

1050

1000

≤60
3.7

6.8

35

60

 27.5

 PL-753560P22C

1100

1050

≤60
3.7

7.5

35

60

 29.5

 PL-853560P22C

1200

1150

≤60
3.7

8.5

35

60

 32.5

 PL-684374P22C

1550

1450

≤60
3.7

6.8

43

74

42.0

 PL-854374P22C

2200

2000

≤60
3.7

8.5

43

74

55.0

 PL-8544125P22C

3300

3100

≤60
3.7

8.5

44

125

98.0

 PL-11044132P22C

4800

4500

≤45
3.7

11.0

44

132

138.0

 PL-8550140P22C

 5100

 5000

≤35
3.7

 8.5

  50

 140

143.0

 PL-605590P22C

2150

2100

≤45
3.7

6.0

55

90

 64.0

 PL-873496P25C

2100

2000

≤35
3.7

8.7

34

96

55.0

 PL-7450140P25C

4000

3900

≤25
3.7

7.4

50

140

103.0

 PL-7459156P25C

5100

5000

≤20
3.7

7.4

59

156

130.0


Features:These High Power Cells Can Get High Discharge Rate Reach To 6C-22C.
                 10C means maximum discharging rate is  8C~10C and continuous discharge rate is 5C~6C;
                 12C means maximum discharging rate is 10C~12C and continuous discharge rate is 7C~8C;
                 16C means maximum discharging rate is 15C~16C and continuous discharge rate is 12C~13C;
                 22C means maximum discharging rate is 20C~22C and continuous discharge rate is 16C~18C;
                 25C means maximum discharging rate is 35C~40C and continuous discharge rate is 24C~25C.

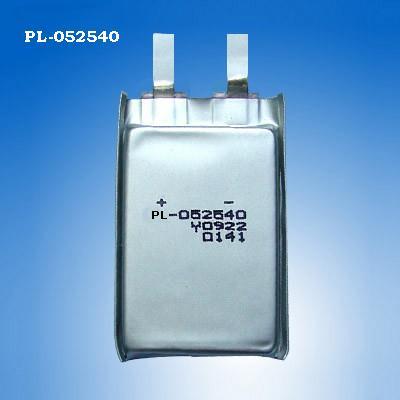

Lionik Lipo For High Rate Dicharge Series(1) -- PL052540


Nominal Capacity (1) 400mAh
Nominal Voltage (2) 3.70V
Resistance <80m
Charging Voltage (Max.) 4.20.05V
Discharging Current (Max.) 2400mAh
Dimensions (T,W,H) (3) 4.80.2×251.0×401.0 mm
Cycle Life >400 cycle
Self-discharge <8%
Operating
Temperature
Range
Charge 0°C~45°C
Discharge -20°C~60°C
Storage -20°C~40°C
Energy Density Volume 300 Wh/L
Weight 170 Wh/kg
Weight(Approx.) (3) 9.00.5g
  1. Nominal Capacity: Discharge Current0.2C, End of Voltage 2.75V, Temperature 25°C.
  2. Nominal Voltage(Average Discharge Voltage): Discharge Current 0.2C, End of Voltage 2.75V, Temperature 25°C.
  3. These Values show the dimensions and weight of the bare battery.

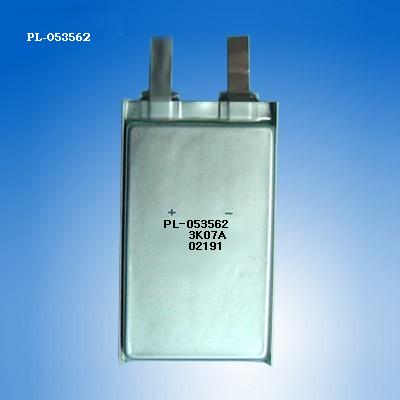

  Lionik Lipo For High Rate Dicharge Series(2) - PL053562


  1. Nominal Capacity: Discharge Current0.2C, End of Voltage 2.75V, Temperature 25°C.
  2. Nominal Voltage(Average Discharge Voltage): Discharge Current 0.2C, End of Voltage 2.75V, Temperature 25°C.
  3. These Values show the dimensions and weight of the bare battery.
Nominal Capacity (1) 1050mAh
Nominal Voltage (2) 3.70V
Resistance <50
Charging Voltage (Max.) 4.20.05V
Discharging Current (Max.) 6300mAh
Dimensions (T,W,H) (3) 4.80.2×35.01.0×62.01.0 mm
Cycle Life >400 cycle
Self-discharge <8%
Operating
Temperature
Range
Charge 0°C~45°C
Discharge -20°C~60°C
Storage -20°C~40°C
Energy Density Volume 330 Wh/L
Weight 170 Wh/kg
Weight(Approx.) (3) 22.00.5g
