Lionik DVD Series Cell List:

Model
Typical Capacit
(mAh)
Minimum Capacity (mAh)
Impedence
(m)
Nominal
Voltage
(V)
Dimension of Bare cell
(mm)
Weight (±0.5g)
Thickness
(±0.2)
Width
(±0.5)
Length
(±0.5)
PL-0625100
1500
1400
≤35
3.7
6.00
25.0
100.0
28.0
PL-5730156
3050
3000
≤20
3.7
5.70
29.5
155.7
62.0
PL-6435146
3150
3000
≤20
3.7
6.40
35.0
146.0
60.0
PL-5536110
2500
2400
≤20
3.7
5.50
36.0
110.0
45.5
PL-4238114
2100
2000
≤20
3.7
4.20
38.0
114.0
41.5
PL-0638114
2600
2500
≤20
3.7
6.00
38.0
114.0
55.0
PL-0838114
3600
3500
≤20
3.7
8.00
38.0
114.0
64.0
PL-554296
2150
2100
≤30
3.7
5.50
42.0
96.0
43.5
PL-064296
2900
2800
≤30
3.7
6.00
42.0
96.0
47.5
PL-654296
3000
2900
≤30
3.7
6.50
42.0
96.0
53.5
PL-0642100
3000
2900
≤20
3.7
6.00
42.0
100.0
54.0
PL-644390
2550
2400
≤30
3.7
6.40
43.0
90.0
57.0
PL-604490
2850
2800
≤20
3.7
6.00
43.5
89.7
60.0
PL-0445135
2900
2800
≤20
3.7
4.00
45.0
135.0
57.0
PL-4545135
3050
3000
≤20
3.7
4.50
45.0
135.0
61.5
PL-0545135
3650
3600
≤20
3.7
5.00
45.0
135.0
65.0
PL-5545135
3950
3900
≤25
3.7
5.50
45.0
135.0
65.5
PL-6045135
4050
4000
≤25
3.7
6.00
45.0
135.0
75.0
PL-6345135
4300
4200
≤25
3.7
6.30
45.0
135.0
79.0
PL-6545135
4500
4400
≤25
3.7
6.50
45.0
135.0
83.0
PL-6845135
4700
4600
≤20
3.7
6.80
45.0
135.0
85.0
PL-0646124
3550
3400
≤30
3.7
6.00
46.0
124.0
81.0
PL-5446125
3550
3500
≤30
3.7
5.40
46.0
125.0
80.0
PL-4047125
2550
2500
≤25
3.7
4.00
47.0
125.0
45.0
PL-5047125
3250
3200
≤25
3.7
5.00
47.0
125.0
60.0
PL-744792
3050
3000
≤25
3.7
7.40
47.0
92.0
58.0
PL-0448135
3000
2900
≤25
3.7
4.00
48.0
135.0
55.0
PL-4848135
3600
3500
≤25
3.7
4.80
48.0
135.0
66.5
PL-0548135
3800
3600
≤25
3.7
5.00
47.0
134.0
71.0
PL-5548135
3900
3800
≤25
3.7
5.50
48.0
135.0
72.0
PL-0648135
4000
3900
≤25
3.7
6.00
47.0
134.0
85.0
PL-0648146
4350
4200
≤20
3.7
6.00
48.0
146.0
93.0
PL-0648148
4500
4400
≤20
3.7
6.00
47.0
147.0
105.0
PL-7548168
6150
6000
≤30
3.7
7.50
48.0
168.0
124.0
PL-645085
3050
3000
≤20
3.7
6.40
49.5
84.7
60.0
PL-745085
3550
3500
≤20
3.7
7.40
49.5
84.7
70.0
PL-775060
2550
2500
≤20
3.7
7.70
49.5
59.7
52.0
PL-5450150
4950
4900
≤20
3.7
5.40
49.5
149.7
102.0
PL-3450100
1650
1550
≤30
3.7
3.60
50.0
100.0
40.0
PL-0550100
2650
2500
≤30
3.7
5.00
50.0
100.0
50.0
PL-0550110
3050
3000
≤30
3.7
5.00
50.0
110.0
58.0
PL-5550100
2850
2700
≤30
3.7
5.50
50.0
100.0
52.0
PL-675178
3050
3000
≤20
3.7
6.70
51.0
78.0
62.0

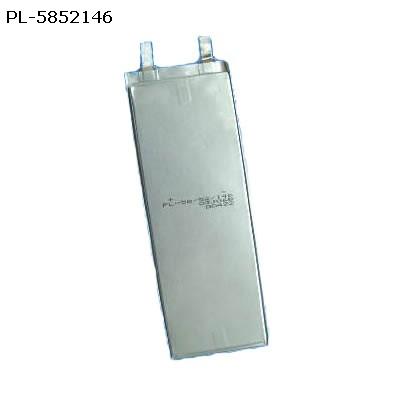

PL-5852146
4400
4200
≤20
3.7
5.80
51.0
145.0
100.0
PL-7552146
5650
5500
≤20
3.7
7.50
52.0
146.0
110.0
PL-575576
2500
2400
≤30
3.7
5.70
55.0
76.0
47.5
PL-355585
1550
1500
≤30
3.7
3.30
55.0
85.0
33.0
PL-425585
2000
1950
≤30
3.7
4.00
55.0
85.0
39.0
PL-555585
2600
2500
≤30
3.7
5.30
55.0
85.0
53.0
PL-065585
3100
3000
≤30
3.7
5.80
55.0
85.0
71.0
PL-655585
3500
3400
≤30
3.7
6.30
55.0
85.0
78.0
PL-305590
1450
1400
≤30
3.7
2.80
55.0
90.0
28.0
PL-645975
3050
3000
≤20
3.7
6.40
59.0
75.0
60.0
PL-675975
3550
3500
≤20
3.7
6.70
59.0
75.0
70.0
PL-6059156
6050
6000
≤20
3.7
6.00
58.5
155.7
125.0
PL-6459156
6450
6400
≤20
3.7
6.40
58.5
155.7
140.0
PL-8059156
8050
8000
≤15
3.7
8.00
58.5
155.7
170.0
PL-526186
2800
2650
≤30
3.7
5.20
61.0
86.0
57.0
PL-606166
2650
2600
≤20
3.7
6.00
60.5
65.7
53.0
PL-506294
3100
3000
≤30
3.7
5.00
62.0
94.0
54.0
PL-686367
3100
2900
≤30
3.7
6.80
63.0
67.0
58.0
PL-476474
2600
2550
≤30
3.7
4.70
64.0
74.0
52.0
PL-306483
1750
1500
≤30
3.7
3.00
64.0
83.0
34.0
PL-386483
2050
2000
≤30
3.7
3.80
64.0
83.0
39.5
PL-706469
3550
3500
≤30
3.7
7.00
64.0
69.0
73.0
PL-706483
4300
4200
≤30
3.7
7.00
64.0
83.0
77.0
PL-706656
2700
2600
≤30
3.7
7.00
66.0
56.0
52.0
PL-806656
3000
2800
≤30
3.7
8.00
66.0
56.0
57.0
PL-3367100
2550
2500
≤30
3.7
3.30
67.0
100.0
51.0
PL-4567100
3150
3000
≤30
3.7
4.80
67.0
100.0
59.0
PL-5567100
4250
4100
≤30
3.7
5.50
67.0
100.0
85.5
PL-0667100
3950
3800
≤30
3.7
6.00
67.0
100.0
83.0
PL-0967220
10500
10000
≤20
3.7
9.00
67.0
220.0
205.0
PL-556877
3300
3100
≤20
3.7
5.50
68.0
77.0
60.5
PL-0469114
3150
3000
≤30
3.7
4.00
69.0
114.0
60.0
PL-507062
2100
2000
≤20
3.7
5.00
70.0
62.0
45.0
PL-857062
3800
3600
≤20
3.7
8.50
70.0
62.0
71.5
PL-1074170
13000
12500
≤15
3.7
10.0
74.0
170.0
250.0
PL-5488120
6550
6500
≤15
3.7
5.50
87.5
119.7
140.0
PL-8088120
9000
8000
≤15
3.7
8.80
87.5
119.7
172.0
PL-5092110
6050
6000
≤20
3.7
5.20
91.7
109.7
125.0
PL-3296135
3400
3200
≤20
3.7
3.20
96.0
135.0
76.0
PL-4596135
5300
5100
≤20
3.7
4.50
96.0
135.0
114.0
PL-04100100
4000
3800
≤20
3.7
4.00
99.0
99.0
94.0
PL-61100100
6800
6600
≤20
3.7
6.10
99.7
99.7
125.0
PL-50103122
6100
6000
≤20
3.7
5.00
103.0
122.0
126.0
PL-55103122
6600
6400
≤20
3.7
5.50
103.0
122.0
134.0
PL-70103122
8600
8300
≤20
3.7
7.00
103.0
122.0
173.0
PL-68135170
16000
15000
≤15
3.7
6.80
135.0
170.0
245.0

Nominal Capacity (1) 4400mAh
Nominal Voltage (2) 3.70V
Resistance 30m
Charging Voltage (Max.) 4.20.05V
Discharging Current (Max.) 3200mAh
Dimensions (T,W,H) (3) 5.80.2×52.01.0×146.01.0 mm
Cycle Life >300 cycle
Self-discharge <8%
Operating
Temperature
Range
Charge 0°C~45°C
Discharge -20°C~60°C
Storage -20°C~40°C
Energy Density Volume 280 Wh/L
Weight 175 Wh/kg
Weight(Approx.) (3) 1000.5g
  1. Testing conditions: Discharge current 0.2C; End of voltage 2.75V; Temperature 25
  2. Lionik cells have obtained ISO9001 2000, ISO 14001, CE, UL, certification
  3. The shapes and dimensions can be customized to various requirements.

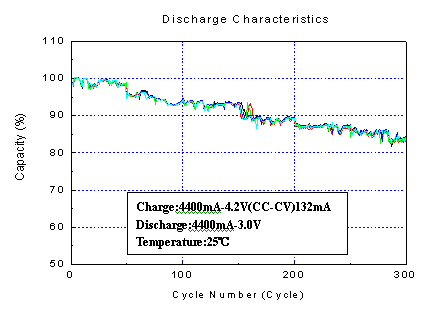

General Characteristics Charts
